Magnetic Sheeting Self-adhesive
Description:
- Material : Flexible & Rubber Magnet
- Shape of magnet : Sheet
- Colour : White
- Laminate : White Self-adhesive
- Width : 620mm
- Thickness: 0.4mm
- Tolerance: +/-0.1mm，thickness +/-0.05mm
- Density : 3.70g/cm3
- Operating Temp(Max).: -20 ~ 80℃ （176℉）
- Magnetized Direction: Magnetized on the dark brown side.
- Application：Great for Display, Message board, Education and other commercial applications
- Other size and color are available on request.

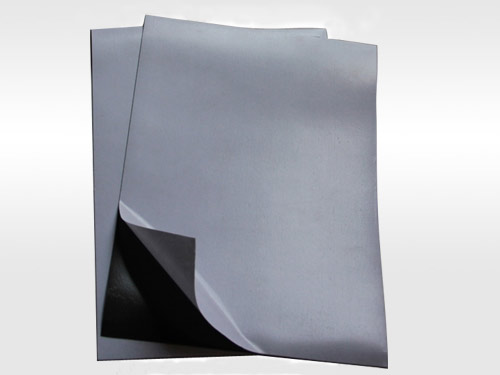

Magnetic Sheet With Adhesive 620mm x 0.4mm x 30m
Grade of Flexible Magnet
Dimension Range of Magnetic Sheet
Length : 15meter or 30meter per roll
Width : 610mm ~ 1200mm
Thickness : 0.3mm ~ 2.0mm
Laminates of Magnetic Sheet
Suface treatment of magnetic sheeting usually used are vinyl and self-adhesive tape
Plain (no laminate, dark brown both sides)
White matt ( gloss) vinyl
Coloured matt(gloss)vinyl
Inddor & outdoor adhesive
Foam backing
Other laminate available on request
Tolerance of Magnetic Sheet
Standard tolerance : +/-0.1mm (±0.004” )
Thickness : +/-0.05mm
Also stricter tolerance are possible if specially requested.
Packaging and Delivery
Packaging: Neutral box packaging, foam inside and other protection, to ensure
safely of transportation.
Delivery time: 8 ~ 20days, depend on customer’s order quantity.
How to order
1.Dimention of Magnet sheet ?
2.Laminate of Magnetic sheet ?
Plain(no laminate), Coloured PVC or Adhesive
3.Quantity what you need ?
Piece or Roll
4.Colors of magnetic sheet ?
Green, Blue, Yellow, Red, Pink, White and Brown.
5.What’s the product used for ? Indoor or outdoor ?
Grade of Flexible Magnet
| Magnetic Properties of Flexible Magnet | ||||||||
| Grade | Remanence (Br) | Coercivity (bHc) | Intrinsic Coercivity (jHc) | Max Energy (BH max) | ||||
| mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | |
| Flexible 01 | 140-155 | 1400-1550 | 90-120 | 1125-1500 | 130 | 1625 | 4.0-5.6 | 0.5-0.7 |
| Flexible 02 | 160-185 | 1600-1850 | 120-140 | 1500-1750 | 150 | 1875 | 5.6-7.0 | 0.7-0.89 |
| Flexible 03 | 200-210 | 2000-2100 | 145 | 1812 | 160 | 2000 | 8.0-9.6 | 1.0-1.2 |
| Flexible 04 | 230-245 | 2300-2450 | 160 | 2000 | 175 | 2188 | 10.0 - 11.0 | 1.25-1.39 |
| Flexible 05 | 250 - 260 | 2500-2600 | 160 | 2000 | 182 | 2275 | 11.2 - 12.8 | 1.40-1.51 |
Dimension Range of Magnetic Sheet
Length : 15meter or 30meter per roll
Width : 610mm ~ 1200mm
Thickness : 0.3mm ~ 2.0mm
Laminates of Magnetic Sheet
Suface treatment of magnetic sheeting usually used are vinyl and self-adhesive tape
Plain (no laminate, dark brown both sides)
White matt ( gloss) vinyl
Coloured matt(gloss)vinyl
Inddor & outdoor adhesive
Foam backing
Other laminate available on request
Tolerance of Magnetic Sheet
Standard tolerance : +/-0.1mm (±0.004” )
Thickness : +/-0.05mm
Also stricter tolerance are possible if specially requested.
Packaging and Delivery
Packaging: Neutral box packaging, foam inside and other protection, to ensure
safely of transportation.
Delivery time: 8 ~ 20days, depend on customer’s order quantity.
How to order
1.Dimention of Magnet sheet ?
2.Laminate of Magnetic sheet ?
Plain(no laminate), Coloured PVC or Adhesive
3.Quantity what you need ?
Piece or Roll
4.Colors of magnetic sheet ?
Green, Blue, Yellow, Red, Pink, White and Brown.
5.What’s the product used for ? Indoor or outdoor ?
