Round magnetic base
Description:
- Magnetic round base cover has high pull strength, can lift from 1.4kgs to 155kgs.
- Magnetic round base cover has a powerful ring magnet in a durable cup
- with Nickle, Zinc coating. Mounting hole in the center.
- High holding power, High pull strength;

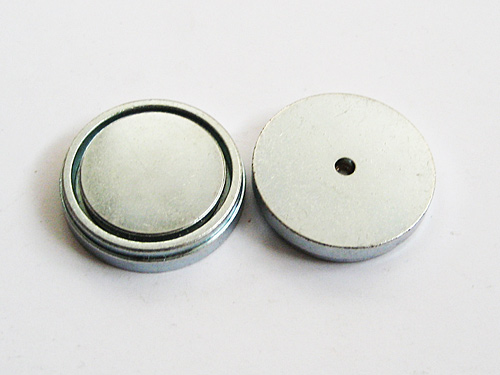

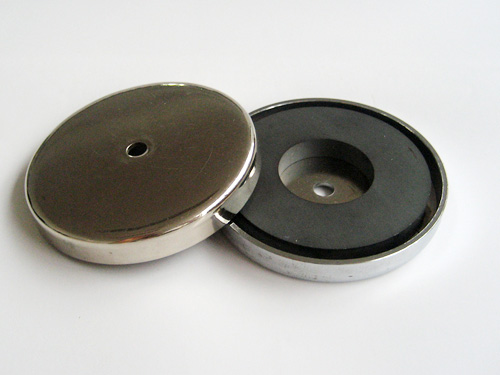

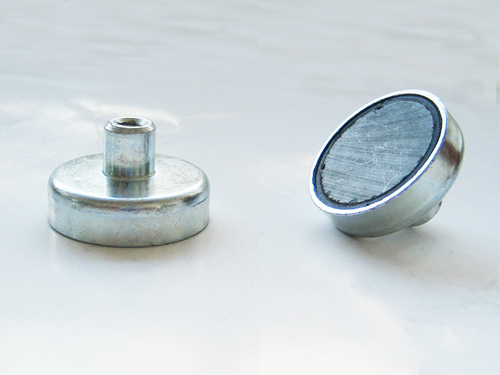

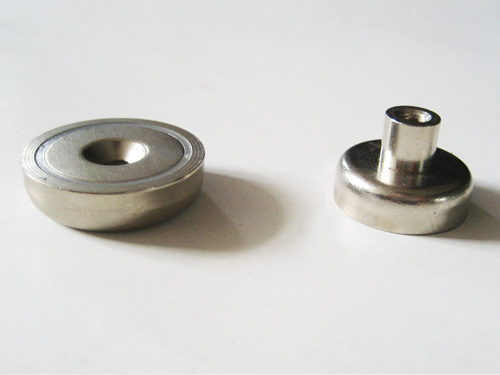

Round magnetic base are powerful low-profile magnets with an attachment hole in the center. Attach a hook or knob to position or hold inspection equipment, indicator gauges, lamps, signs, antennas and more. Magnetic on one side. All round base magnets are nickel plated. For other types of plating, call one of our knowledgeable sales specialists.
Ferrite/Neodymium Round Base Magnetic Cover ( Pot Magnet; Cup Magnets)
Ferrite/Neodymium Round Base Magnetic Cover ( Pot Magnet; Cup Magnets)
Part No. | Magnet | D (mm) | H (mm) | d1 (mm) | d2 (mm) | PULL Strength (Kg) |
RFD13 | Ferrite | 13 | 4.5 | 3.3 | 5.0 | 0.6 |
RFD16 | Ferrite | 16 | 4.5 | 3.5 | 7.0 | 1.4 |
RFD20 | Ferrite | 20 | 6.0 | 4.2 | 9.0 | 2.7 |
RFD25 | Ferrite | 25 | 7.0 | 5.5 | 11.0 | 3.6 |
RFD32 | Ferrite | 32 | 7.0 | 5.5 | 11.0 | 7.2 |
RFD40 | Ferrite | 40 | 8.0 | 5.5 | 11.0 | 9.0 |
RFD50 | Ferrite | 50 | 10.0 | 8.5 | 22.0 | 18.0 |
RFD63 | Ferrite | 63 | 14.0 | 6.5 | 24.0 | 29.0 |
RFD80 | Ferrite | 80 | 18.0 | 6.5 | 11.5 | 43.0 |
RFD83 | Ferrite | 83 | 18.0 | 10.5 | 32.0 | 48.0 |
RFD88 | Ferrite | 88 | 18.0 | 13.6 | 33.0 | 50.0 |
RND16 | NdFeB | 16 | 5.0 | 3.5 | 6.5 | 4.0 |
RND20 | NdFeB | 20 | 7.0 | 4.5 | 8.0 | 6.0 |
RBD25 | NdFeB | 25 | 8.0 | 5.5 | 9.0 | 14.0 |
RND32 | NdFeB | 32 | 8.0 | 5.5 | 9.0 | 23.0 |
RND36 | NdFeB | 36 | 9.0 | 6.5 | 11.0 | 29.0 |
RND42 | NdFeB | 42 | 9.0 | 6.5 | 11.0 | 32.0 |
RND48 | NdFeB | 48 | 11.5 | 8.5 | 15.0 | 63.0 |
RND60 | NdFeB | 60 | 15.0 | 8.5 | 15.0 | 95.0 |
RND75 | NdFeB | 75 | 18.0 | 10.5 | 18.0 | 155.0 |
