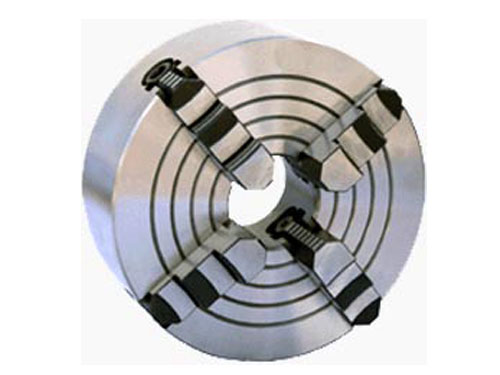

4-Jaw independent lathe chuck
Description:
- Used to hold workpiece on lathes and internal for grinding, milling, lapping and cutting process.
- Powerful Permanent Magnets
- High precision, powerful clamping force
According to the structure ,the circular permanent magnetic chuck can be classified as ordinary pole type,fine pole type and radial pole type.
Excellent holding power with low energy consumption.
Suitable for grinding application, holding components on grinding machines.
Available in diameter from 125mm ~1600mm.
4-Jaw independent chucks

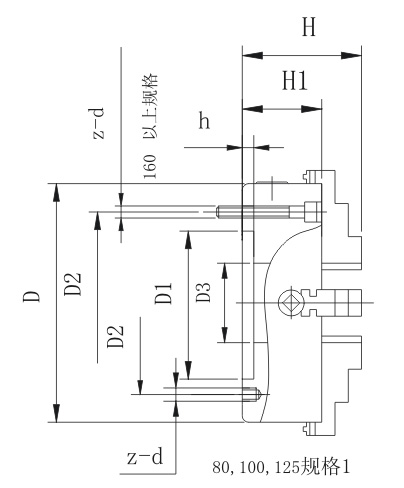

| Diameter | D1 | D2 | D3 | H | H1 | h | z-d |
| RX80-4J | 55 | 66 | 22 | 56 | 42 | 3.5 | 4-M6 |
| RX100-4J | 72 | 84 | 25 | 74 | 54 | 3.5 | 4-M8 |
| RX125-4J | 95 | 108 | 30 | 78 | 56 | 4.5 | 4-M8 |
| RX160-4J | 130 | 145 | 40 | 97 | 65 | 4 | 4-M10 |
| RX200-4J | 125 | 104.8 | 50 | 107 | 75 | 6 | 4-M10 |
| RX250-4J | 110 | 130 | 75 | 120 | 80 | 6 | 4-M12 |
