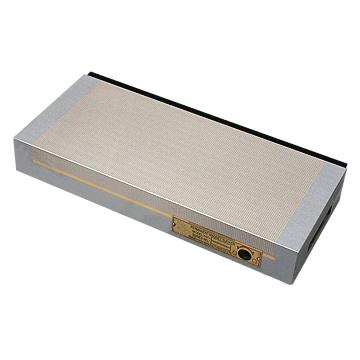

Permanent magnetic chuck

Permanent magnetic chuck
Description:
  • Used to hold workpiece on lathes and internal for grinding, milling, lapping and cutting process.
  • Powerful Permanent Magnets
  • High precision, powerful clamping force

Permanent magnetic chuck is a type of magnetic work holding device consisting of a series of long magnetic inserts arranged side-by-side and interconnected within a grid of conductive material. The chuck is turned "on" by moving magnetic inserts inline with a conductive grid.

The circular permanent magnetic chuck (round magnetic chuck) can be used as auxiliary tool for various kinds of plain surface grinder, universal tool and  lathe for holding ferromagnetic materials for machining.
According to its structure, the circular permanent-magnetic chuck can be classified as straight strip fine-pole type, ordinary pole type and radial pole type.

Large effective area for machining the work pieces
Positive locking at all angles without any distortion
Angle precision 0.007/ 100mm
Low height for more wheel clearance

Normal pitch permanent magnetic chuck(A)（3+1）

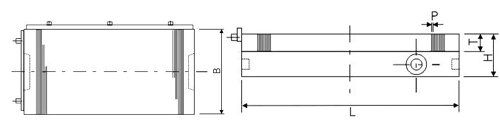

Model L B H T P Magnetic(N/cm2) Weight(Kg)
FX100100 100 100 45 18 1 +3 140N            120N                100N            80N 3.6
FX16070 160 70 45 18 4
FX150150 150 150 48 20 8
FX200150 200 48 11
FX250150 250 48 13.8
FX300150 300 48 16.8
FX350150 350 48 19.6
FX400150 400 53 23.8
FX450150 450 53 26.5
FX20048 200 200 48 22 15
FX25048 250 48 18.5
FX35053 350 53 28.5
FX40053 400 53 31.8
FX45053 450 53 39.5
FX50058 500 250 58 23 53.5
FX60058 600 300 58 77
