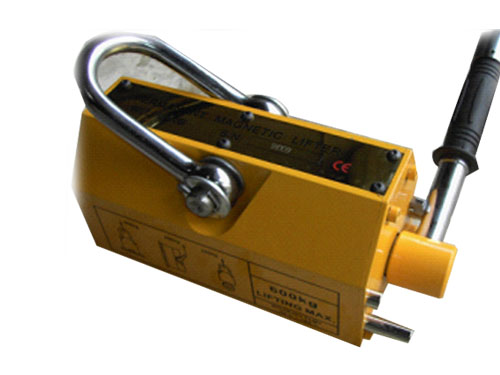

Magnetic plate lifter

Magnetic plate lifter
Description:
  • Strong Permanent Lifting Magnet
  • Magnetic Material: Rare earth Magnet
  • Rated Lifting Capacity(kgs): 100~6000
  • Max lifting capacity(kgs): 300~18000
  • Dimension Length (mm): 92~713
  • Weight (kgs): 3~398
  • Compact design
  • Ideal for round and flat material
  • High lift to its weight ratio
  • Easy and quick to operate through on/off System
  • Enhances plant safety

Lift and handle heavy blocks, castings, steel plates etc. among others.
Easy removal of iron from the magnet is ensures with the help of non-magnetic stainless steel bumping plate.

Permanent Lifting Magnets ( without additional energy being supplied)

Part No.

  Rated lifting capacity

Max lifting capacity

Dimension (mm)

Weight

kgs

kgs

Length

   width

Height

    (kgs)

B1003

100

300

92

64

70

3

B2003

200

600

114

72

86

6

B3003

300

900

165

88

96

10

B5003

500

1500

210

88

96

12.5

B6003

600

1800

216

118

118

20

B10003

1000

3000

264

148

138

37

B15003

1500

4500

308

168

168

62

B20003

2000

6000

397

168

168

80

B30003

3000

9000

443

226

216

160

B50003

5000

15000

582

290

265

320

B60003

6000

18000

713

290

265

398

Max lifting value is an ideal conditions, base on the safety, please do not exceed the rated lifting capacity
