EP core

EP core
Description:

EP Cores are round center-post cubical shapes, which enclose the coil completely. This particular shape minimizes the effect of air gaps formed at mating surfaces in the magnetic path and provides a larger volume ratio to total space used. Shielding is excellent.
Special advantages of ferrite EP core assemblies: wide core selection like; high packaging density on PCBs; choice of linear or flat temperature characteristics; consistency and uniformity.

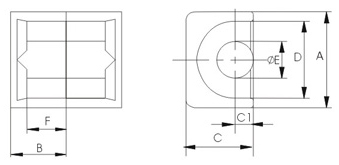

EP CORES (Dimensions)

TYPE Dimensions Unit:mm
A 2B C D E 2F W(g/set)
Ep7 9.20±0.20 7.40±0.20 6.35±0.15 7.40±0.20 3.30±0.10 5.20±0.20 1.4
Ep10 11.50±0.30 10.20±0.20 7.65±0.20 9.40±0.20 3.30±0.15 7.40±0.20 2.8
Ep13 12.50±0.30 12.85±0.15 8.80±0.20 10.00±0.30 4.35±0.15 9.20±0.20 5.1
Ep17 18.00±0.40 16.80±0.20 11.00±0.25 11.60min 5.68±0.20 11.30±0.30 12.0
Ep20 24.00±0.50 21.40±0.20 14.95±0.35 16.10min 8.75±0.25 14.30±0.30 28.0

Core Set Parameters

TYPE C1(mm) Le(mm) Ae(mm) Ve(mm) AL±25%(nH/N)
Lp4 Lp44 Lh5 Lh7 Lh10
Ep7 1.52 15.7 10.3 161.71 1050 1100   2200 5500
Ep10 1.70 19.2 11.3 216.96 1050 1100   2150 5050
Ep13 1.24 24.2 19.5 471.90 1550 1600   3100 7350
Ep17 0.84 28.5 33.9 966.15 2300 2400     1300
Ep20 0.51 39.8 78.0 3104.40 3850 4000     1970
