PQ Cores

PQ Cores
Description:

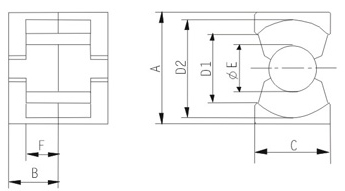

PQ CORES (Dimensions)

TYPE Dimensions unit: mm
A 2B C D1 D2 E 2F W (g/set)
PQ20/16 20.50±0.40 16.20±0.20 14.00±0.40 18.00±0.40 13.30min 8.80±0.20 10.30±0.20 13.0
PQ20/22 20.50±0.40 20.20±0.20 14.00±0.40 18.00±0.40 13.30min 8.80±0.20 14.30±0.20 15.0
PQ26/20 26.50±0.45 20.15±0.25 19.00±0.45 22.50±0.45 15.50min 12.00±0.20 11.50±0.30 31.0
PQ26/25 26.50±0.45 24.75±0.25 19.00±0.45 22.50±0.45 15.50min 12.00±0.20

16.10±0.30

 36.0
PQ27/25 27.00±0.45 27.25±0.25 19.00±0.45 23.10±0.45 16.00min 12.00±0.20 16.10±0.30 37.0
PQ32/20 32.00±0.50 24.75±0.25 22.00±0.50 27.50±0.50 19.00min 13.45±0.25 11.50±0.30 42.0
PQ32/30 32.00±0.50 20.55±0.25 22.00±0.50 27.50±0.50 19.00min 13.45±0.25 21.30±0.30 55.0
PQ35/35 35.10±0.60 30.75±0.25 26.00±0.50 31.50±0.50 23.50min 14.35±0.25 25.00±0.30 73.0
PQ40/40 40.50±0.90 39.75±0.25 28.00±0.60 36.75min 28.00min 14.90±0.30 29.50±0.30 95.0
PQ50/50

50.00±0.70

 49.95±0.25 32.00±0.60 43.30min 31.50min 20.00±0.35

36.10±0.30

 195.0

Core Set Parameters

TYPE C1(mm) Le(mm) Ae(mm) Ve(mm) AL±25%(nH/N)
Lp4 Lp44
PQ20/16 0.60 37.4 62.0 2318.80 3350 3500
PQ20/22

0.73

 45.4 62.0 2814.80 2900

3035
PQ26/20 0.39 46.3 119.0 5509.70 5250 5500
PQ26/25 0.47 55.5 118.0 6549.00 4600 4800
PQ27/25 0.48 56.5 130.0 6600.00 4600 4800
PQ32/20 0.33 55.5 170.0 9435.00 6400 6700
PQ32/30 0.46 74.6 161.0 12010.60 4550 4750
PQ35/35 0.45 87.9 196.0 17228.40 4300 4500
PQ40/40 0.51 101.9 201.0 20481.90 4100 4300
PQ50/50 0.34 113.0 328.0 37064.00 6150 6400
