UF Core

UF Core
Description:

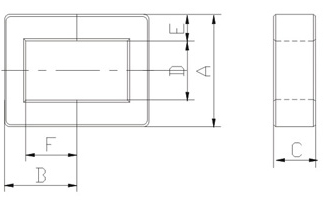

UF CORES (Dimensions)

TYPE Dimensions unit: mm
A 2B C D E 2F G W (g/set)
UF9.8/14 9.80±0.20

14.20±0.20

 2.70±0.20 4.20±0.20 8.40±0.40 8.40±0.40 2.90±0.10 1.3
UF9.8/14A 9.80±0.20 14.20±0.20 3.10±0.20 4.20±0.20 8.40±0.40 8.40±0.40 2.90±0.10 1.5
UF10/15 10.15±0.30 14.80±0.40 2.90 4.15min 8.40 +0.70 -0.00 8.40+0.70 -0.00 3.00±0.20 1.5
UF10.5/16 10.50±0.30 15.80±0.40 5.00±0.30 5.50±0.30 10.80±0.40 10.80±0.40 2.50±0.20 2.5
UF13/20 13.50±0.30 19.80+0.00-0.50 5.00 6.50min 12.20+0.60-0.00 12.20+0.60-0.00 3.50±0.20 4.0
UF15/22 15.20±0.30 22.40±0.50 6.70 4.90min 11.40+1.40-0.00 11.40+1.40-0.00 5.25±0.20 8.5
UF15/23 15.20±0.50 22.80±0.40 6.45±0.30 5.20±0.30 12.80±0.40 12.80±0.40 5.00±0.20 8.6
UF16/20 16.00±0.30 20.00±0.40 6.00±0.15 6.85±0.20 12.00±0.30 12.00±0.30 4.00±0.15 6.7
UF16/22 16.00±0.30 22.00±0.40 6.00±0.15 6.85±0.20 14.00±0.30 14.00±0.30 4.00±0.15 7.3
UF17/33 17.00±0.30 33.20±0.40 6.00±0.10 7.80min 24.00±0.40 24.00±0.40 4.60±0.20 10.0
UF25/28 25.00±0.40 28.00±0.40 7.00±0.30 11.00±0.40 14.00±0.60 14.00±0.60 7.00±0.20 18.0

Core Set Parameters

TYPE C1(mm) Le(mm) Ae(mm) Ve(mm) AL±25%(nH/N)
Lp4 Lp44
PQ20/16 0.60 37.4 62.0 2318.80 3350 3500
PQ20/22

0.73

 45.4 62.0 2814.80 2900

3035
PQ26/20 0.39 46.3 119.0 5509.70 5250 5500
PQ26/25 0.47 55.5 118.0 6549.00 4600 4800
PQ27/25 0.48 56.5 130.0 6600.00 4600 4800
PQ32/20 0.33 55.5 170.0 9435.00 6400 6700
PQ32/30 0.46 74.6 161.0 12010.60 4550 4750
PQ35/35 0.45 87.9 196.0 17228.40 4300 4500
PQ40/40 0.51 101.9 201.0 20481.90 4100 4300
PQ50/50 0.34 113.0 328.0 37064.00 6150 6400
